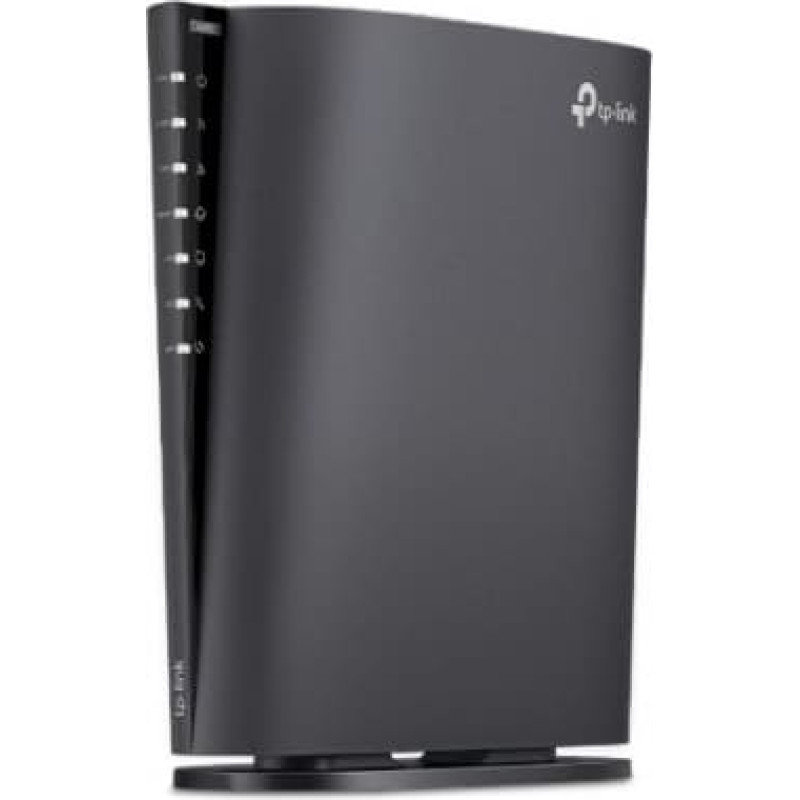

Tp-Link Router Archer AX80 AX6000 Wi-Fi 6

Features:

• Lightning-Fast AX6000 WiFi: Up to 6.0 Gbps (4804 Mbps + 1148 Mbps) WiFi for faster browsing, streaming, and downloading, all at the same time.¹
• 2.5G Multi-Gigabit Port: 1× 2.5 Gbps WAN/LAN port + 1× 1 Gbps WAN/LAN port + 3× Gigabit LAN ports + 1× USB 3.0 port ensure max flexibility and boosted throughput.
• Maximized Coverage: Four dua-band high-gain antennas equipped with Beamforming ensure vast coverage.
• More Devices with Less Lag: OFDMA and MU-MIMO technology deliver data to multiple devices simultaneously.¹
• Powerful CPU: Top-notch quad-core processor ensures fast transmission speeds and smooth operation of numerous devices and applications.
• VPN Client Supported: Allow devices in your home network to access remote VPN servers without needing to install VPN software on every device.
• TP-Link HomeShield: Enhanced security defends against the latest cyber threats.⁵
• EasyMesh-Compatible - Flexibly creates a Mesh network by connecting to an EasyMesh-compatible router for seamless whole-home coverage
•  Compatible with Alexa: Control your router via voice commands and make your life smarter and easier with Amazon Alexa.

Technical specifications:

Wireless

• Standards: Wi-Fi 6

  • IEEE 802.11ax/ac/n/a 5 GHz
  • IEEE 802.11ax/n/b/g 2.4 GHz
• WiFi Speeds: AX6000

  • 5 GHz: 4804 Mbps (802.11ax, HE160)
  • 2.4 GHz: 1148 Mbps (802.11ax)
• WiFi Range: Suitable for 3+ bedroom houses

  • 4× Dual-Band High-Performance Antennas
  • Beamforming
  • High-Power FEM
• WiFi Capacity: High

  • Dual-Band
  • OFDMA
  • Airtime Fairness
  • DFS
  • 8 Streams
  • Working Modes: Router Mode, Access Point Mode

Security

• Network Security: SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway
• HomeShield Security: Real-Time IoT Protection, Malicious Site Blocker, Intrusion Prevention System, DDoS Attack Prevention, Home Network Scanner
• Guest Network: 1× 5 GHz, 1× 2.4 GHz
• VPN Server: OpenVPN, PPTP, L2TP, WireGuard
• VPN Client: OpenVPN, PPTP, L2TP, WireGuard
• WiFi Encryption: WPA3, WPA2, WPA, WPA/WPA2-Enterprise (802.1x)

Hardware

• Ethernet Ports:

  • 1× 2.5 Gigabit WAN/LAN Port
  • 1× Gigabit WAN/LAN Port
  • 3× Gigabit LAN Ports
• USB Support: 1× USB 3.0 Port (FTP Server, Media Server, Samba Server)
• Buttons: LED On/Off and Wi-Fi On/Off Combo Button, WPS Button, Power On/Off Button, Reset Button
• Power: 12 V/2 A

Software

• Protocols: IPv4, IPv6
• Service Kits: HomeShield
• OneMesh™: Supported
• Parental Controls: HomeShield Parental Controls
• WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP
• Quality of Service: QoS by Device
• Cloud Service: Auto Firmware Upgrade, OTA Firmware Upgrade, TP-Link ID, DDNS
• NAT Forwarding: Port Forwarding, Port Triggering, DMZ, UPnP
• IPTV: IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN
• DHCP: Address Reservation, DHCP Client List, Server
• DDNS: TP-Link, NO-IP, DynDNS
• Management: Tether App, Webpage

Other

• System Requirements: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
• Certifications: CE, RoHS, JPA JRF VCCI
• Environment:

  • Operating Temperature: 0℃~40℃ (32℉ ~104℉)
  • Operating Humidity: 10%~90% non-condensing

Test Data

• WiFi Transmission Power:

  • CE: <23dBm (5.15GHz~5.35GHz), <30dBm (5.47GHz~5.71GHz), <20dBm (2.4GHz)
• WiFi Reception Sensitivity:

  • 2.4 GHz and 5 GHz detailed sensitivity levels

Physical

• Dimensions (W×D×H): 7.9 × 7.4 × 2.3 in (200 × 189 × 59 mm)

Items included:

• Wi-Fi Router Archer AX80
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide
